24000bph Rotary Tea Filler, Rinsing-Filling-Capping Machine Liquid Packaging Machine
- machinery capacity:12000BPH, 20000BPH, 16000BPH
- application:Beverage
- packaging type:Bottles
- packaging material:Plastic
- automatic grade:Automatic
- driven type:Electric
- Voltage:380V
- place of origin:Guangdong, China
- brand name:VANTA
- dimension(l*w*h):4950X3850X3250
- warranty:1 Year
- key selling points:High-Accuracy
- filling material:Beer, Other, Milk, Water, Oil, Juice, Powder
- filling accuracy:1%
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Motor, Pressure Vessel, Pump, Other
- Capacity:24000bph
- Dimension:4950X3850X3250mm
- Bottle Volume:0.35-2L
- Product name:Automatic Bottle Washing Filling Capping Machine
- Type:Filling Machine
- Condition:New
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
- Showroom Location:Canada, Saudi Arabia
- Warranty of core components:1 Year
- Weight:1200
1. Description
Vanta's GZH series filling line are designed especially for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 12000BPH to 36000BPH.
2. Datasheet
| Water filling machine model | WSD-GZH24000 |
| Capacity (BPH) | 24000 |
| Filling volume (L) | 0.35-2 |
| Rinser-filler-capper quantity | 50-50-15 |
| Bottle size (mm) | Φ50-Φ90 H 150-310 |
| Filling accuracy (%) | ±2 |
| Pneumatic pressure (mpa) | 0.5 |
| Air consumption (L/min) | 1000 |
| Rated voltage (V) | 380 |
| Motor power (kw) | 11 |
| Rinsing water consumption ( /h) | 2.5 |
| Filling water consumption ( /h) | 12 |
| Dimensions (LXWXH mm) | 4950X3850X3250 |
| Weight (kg) | 12000 |
3. Competitive advantages
3.1 It employs PLC, frequency convertor, human-machine interface and imported famous brand components
3.2 It can be connected with UHT, CIP and bottle tilting sterilizing system.
3.3 Reasonable and firm structure, stable running state.
3.4 The suspension bottle neck catcher allows easy change of bottle type.
3.5 Safe protective devices ensure safety of operator and machine.
3.6 The magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage.
3.7 The module of screw capper adopts inner grooves to increase the capping rate.
3.8 The micro negative-pressure gravity backflow filling principle increases the filling accuracy and reduces contamination.
3.9 The unique control device keeps the backflow volume under 5%.
3.10 There is no plastic seal ring at the fill valve, avoiding any dust enter inter the bottle.
3.11 High quality air filter ensures the working airflow reaches the sanitation criteria.

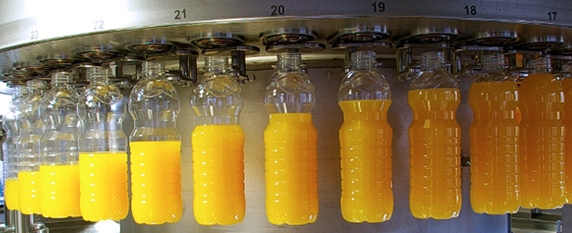

4. Product:
