Automatic Case Forming Carton Erector Box Erector Machine Liquid Packaging Machine
- video outgoing-inspection:Provided
- machinery test report:Provided
- core components:PLC, Engine, Bearing, Gearbox, Motor
- automatic grade:Automatic
- usage:Other Forming Machine
- place of origin:Guangdong, China
- brand name:VANTA
- voltage:380V
- dimension(l*w*h):2783X2770X2310mm
- warranty:12 months
- key selling points:High-Accuracy
- Product name:Paper Box Forming Machine
- Speed:40 Sheet/min
- Function:Cardboard Box Making
- Processing material:Corrugated Board
- Finished Products:Packing Box
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory
- Showroom Location:Canada, Morocco
- Warranty of core components:1 Year
- Condition:New
- Weight:1.9
http://youtu.be/X3i_58hITYg
1. Description:
CX Series Carton Erectors are capable of forming and sealing a large variety of corrugated trays, cases and boxes. The Case Forming Machine is perfect choice to package in low, medium or high speed production lines. Vanta's durable Box erectors can handle up to 40 cases per minute, and be applied to products in various sizes and types. The Carton Former adopts the world's advanced technology and techniques, aiming to bring maximum convenience and profits for customers.
2. Equipment datasheet
| Machine Model | CX40 |
| Capacity (BPM) | 36 |
| Packing material | Corrugated paper |
| Handle case size | Min. 230mm×180mm×180mm Max. 420mm×330mm×300mm |
| Machine size | 2783X2770X2310mm (LXWXH) |
| Equipment installed power | 7.5kw |
| Control power | 24V DC |
| Compress air | Pressure: 0.4~0.8MPa Consumption: 100L/MIN |
| Weight | 1.9T |
| Ground load | 8 X 7500 N |
| Noise level | ≤ 85 dB |
| Environment request | 1. Temperature:Min.+10 º C -Max.+45 º C,Fluctuations in daily working ±3 º C 2. Humidity:Max.90% 3. Product temperature: Min.10 º C 4. Set according to attitude of 800 meter |
3. Structure characters:
3.1 It adopts photoelectric switch to detection signal and input to PLC which controls the internal electromagnetic valve and the operation. English is employed in the HMI and manual books.
3.2 The imported pneumatic and electrical components has low failure rate.
3.3 The doors are equipped with safety switch, so that the power will cut off once a door is open.
3.4 It can be used on space-limited area with mature design to avoid shaking.

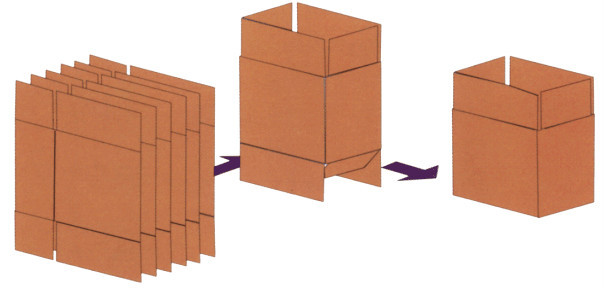

4. Erecting steps:

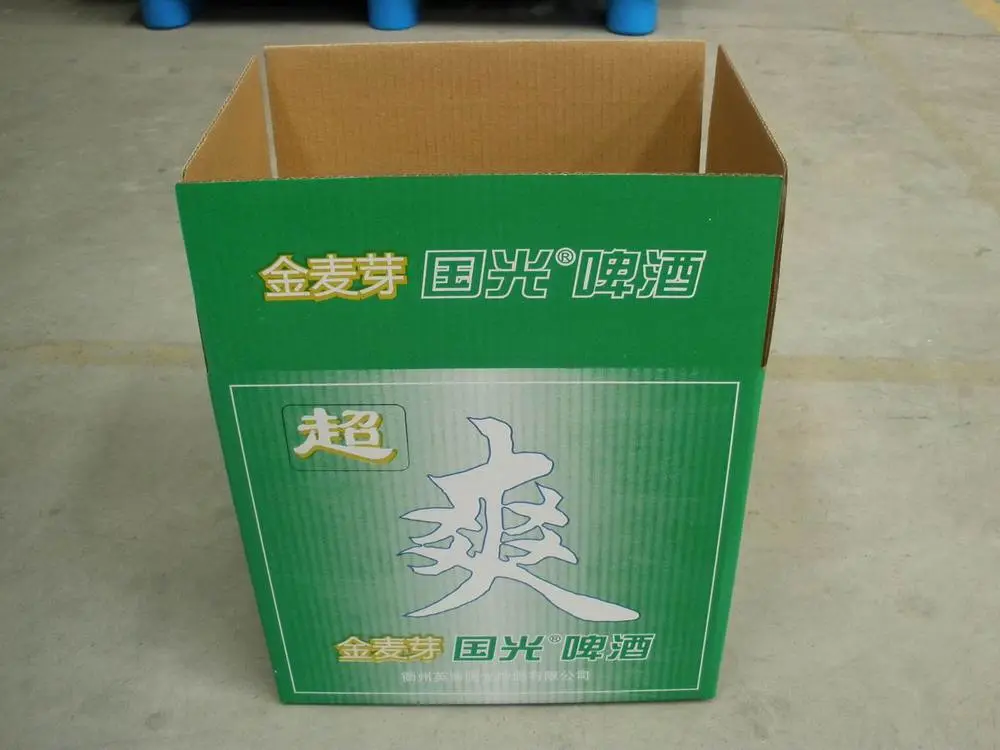

5. Finished Products:
