Case Packing Machine Dropdown Carton Packer
- application:Beverage, Chemical, Medical
- packaging type:Bottles, Cans
- packaging material:Glass, Metal, Plastic
- automatic grade:Automatic
- driven type:Electric
- Voltage:380V
- place of origin:Guangdong, China
- brand name:VANTA
- dimension(l*w*h):1400X860X1870
- warranty:1 Year
- key selling points:High-Accuracy
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Bearing, Motor, Pump, Gear, PLC, Other
- Name:Automatic Boxing Cartoning Packing Machine
- Keywords:Carton Packaging Machine
- Function:Carrying
- Speed:30-60 Boxes/minute
- Type:Packaging Line
- Applicable Industries:Food & Beverage Factory, Food & Beverage Shops
- Showroom Location:Canada, Saudi Arabia
- Condition:New
- Warranty of core components:1 Year
- Weight:1500
http://youtu.be/UX_I1BLcfdo
1. Description:
Automatic machine for packing product into cartons with a gravity system with moving supports fitted on the in feeding lines.
The vertical up-down movement of the cartons which takes place on the loading conveyor is synchronized with the introduction of the bottles and powered by belts. It is a special ideal for plastic products.
2. Equipment datasheet:
| Model | ZX15 |
| Capacity(CPM ) | 15 CPM |
| Application | water, milk, seasoning etc. |
| Bottle material | PET, metal |
| Bottle shape | around, square, oval |
| Bottle size(mm) | Ø50~85mm H230~330mm |
| Equipment dimension | 1400×860×1870 (L x W x H, mm) |
| Power consumption | 0.75Kw |
| compressed air | (a)pressure: 0.6MPa (b)consumption: 50NL/min |
| Main Power supply | 3P AC380V 50/60Hz |
| Auxiliary power supply | AC220V; DC24V |
| Equipment weight | 0.5T |
| Equipment noise level | ≤85 dB(A) |
3. Competitive Advantage:
3.1 A lower investment cost.
3.2 Faster return on investment.
3.3 High-quality and advanced device configuration, use the international generic accessories.
3.4 Reliable main drive gear and synchronous bottle blocking, bottle grabbing and bottle guiding system.
3.5 Reliable bottle input, bottle counseling, synchronous bottle transporting, sub-bottle system.
3.6 Expand production, reduce material waste and improve yield.
3.7 Equipment with flexible application and easy to operate.
3.8 Synchronous adjustment, easy change-over, and time-saving.
3.9 User-friendly interface.

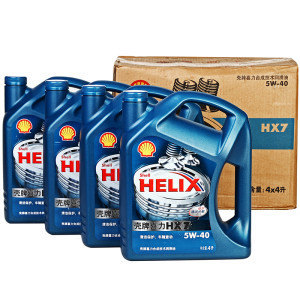

4. Product:
