Gable Top Hot Filling Machine with auto capping function (HD-PH3000) Liquid Packaging Machine
- machinery capacity:8000BPH, 12000BPH, 20000BPH
- application:Beverage
- packaging type:Gable Top Box
- packaging material:Paper
- automatic grade:Automatic
- driven type:Electric
- Voltage:380V
- place of origin:Guangdong, China
- brand name:VANTA
- dimension(l*w*h):3300(L)*2100(W)*2300(H)mm
- warranty:1 Year
- key selling points:High-Accuracy
- filling material:Beer, Other, Milk, Water, Oil, Juice, Powder
- filling accuracy:1%
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Motor, Pressure Vessel, Pump, Other, Gear, Bearing
- Product name:Automatic Bottle Washing Filling Capping Machine
- Function:Filling Capping Labeling
- Suitable for:Fluid Material (alll Liquid Products)
- Keywords:Liquid Filling Line
- Type:Filling Machine
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
- Showroom Location:Canada, Indonesia
- Warranty of core components:1 Year
- Weight:3500
http://youtu.be/hkKkFIaIOQs
1. Basic Parameters:
1.1 Capacity: 250—1000ml ( can be filled by one machine)
1.2Output: 3000 pcs/hour, with capping 2600 pcs/hour
1.3Power: 27KW (3Φ,380V,50HZ)
1.4Air consumption: 730L/min (8kg/ cm²)
1.5Cooling water consumption:
(1) cooling water 6-8℃, 22.8L/min(2.8kg/ cm²)
(2) tap water 21℃,4.6L/min(2.1kg/ cm²)
1.6 Measurement: 3300(L)*2100(W)*2300(H)mm
1.7 Weight: 3500kg
2. Basic configuration
graduator | TANTZU, USA |
Stove heating unit | QUANMAO, TAIWAN |
Pneumatic element | FESTO, GERMANY |
Electrical element | SIEMENS, GERMANY |
Fiber optical sensor | TURCK, GERMANY |
Transducer, PLC | MITSUBISHI, JAPAN |
Automatic oil-feeding system | VALLEY, TAIWAN |
Interface system | HITECH, TAIWAN |
Bearing | EMERSON, USA |
Material of stainless steel | 304/316 |
Ultrasonic welding system | SHANTOU, CHINA |
3. Working process:
(1) Put cardboard into carton holder (manually) → Bottom pre-forming → Bottom heating and sealing → Ultrasonic capping (Optional) → Top pre-forming→ Filling → Top heating and sealing → Date printing → Finished product
(2)The whole process is controlled by PLC, and only need one person to operate.
4. Features:
(1) PLC control, only need one worker.
(2) Apply touch screen which shows relevant information for operator to make the operation easy.
(3) Automatically record the working status which can be long-term saved.
(4) Automatic lubrication.
(5) Automatically failure alarm, diagnosing, and solution indicating.
(6) The filling capacity can be adjusted at will.
(7) The capping function is optional.
(8) Can be installed with remote debugging system, which can solve problems for long distance customers.
5. Photos of machine:

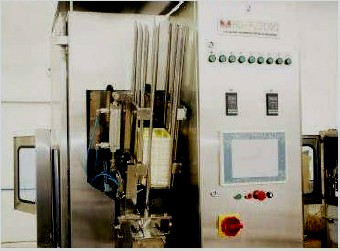

(1) Touch screen and carton infeed
(2)carton bottom forming section

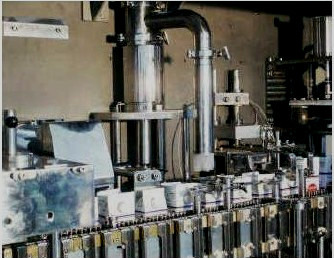

(3)Beverage filling section

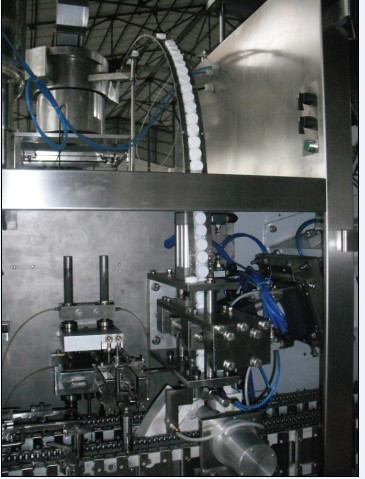

(4)conveyor cap and welding cap system:
5. Finsihed Product:
