Hot Selling Single Column Palletizer case palletizing machine auto palletizer

• application:Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles, Medical
• packaging type:Cartons, case
• packaging material:Metal, Paper, Plastic
• automatic grade:Automatic
• driven type:Electric
• Voltage:380V
• place of origin:Guangdong, China
• brand name:VANTA
• dimension(l*w*h):2392*2412*4212
• warranty:1 Year
• key selling points:High-Accuracy
• machinery test report:Provided
• video outgoing-inspection:Provided
• core components:Bearing, Motor, Pump, Gear, Other
• Product name:Robot Palletizer
• Usage:Package
• Machine type:Automatic High Speed
• Capacity:160kg
• Type:Packaging Line
• Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Retail, Food & Beverage Shops
• Showroom Location:Canada, Morocco
• Condition:New
• Warranty of core components:1 Year
• Weight:3500

A palletizer or palletiser is a machine which provides automatic means for stacking cases of goods or products onto a pallet.
Palletizer is suitable for palletizing of carton, plastic crate, shrink wrapped pack and five gallon bottle etc. It consists of case feed, marshalling station, pusher, pallet feeding etc.

2.   Equipment datasheet

3. Working principle:
Empty pallet loaded on the pallet dispenser which releases pallet will be conveyed to palletizing position then stop and wait for palletizing.
Pack infeed by belts, the distance between two packs increased by different speed of the belts then entry to roller conveyor It can rotate the pack 90 ° when the pack needs to rotate 90°it is in a position of pack rotation and the block activated by the cylinder. The pack pressed on the speed up bush because the external diameter of the speed up bush is bigger than the diameter of roller conveyor then line speed increased. External speed of the pack is faster than internal then rotation goes smoothly. If no need rotation the block will not work, the pack will go forward under the guide until the pack stopper stops it. If needs distance among packs, the pack stopper under roller will activate and keep distance among packs. Continuous pack infeed for one row pack pushing rod will move the complete row forward to the layer table. The same principle it can push 2nd , 3rd row on the layer table. The layer table lifts in a right position driven by main motor to wait for the complete layer and moves toward to the up right position of pallet, pack pushing rod is in a status of pushing activated by the cylinder. Layer table returns back and the complete layer loads on the pallet.

4. Working environment
4.1 Temperature:Min.+10 º C -Max.+45 º C,Fluctuations in daily working ±3 º C
4.2  Humidity:Max.90%.
4.3 Set according to attitude of 1000 meters
4.4 If the above conditions can not meet or exceed the size specified in the contract, the customer shall immediately notify the VANTA sales department in order to make the appropriate adjustments to ensure the normal operation of the machine. If the customer fails to notify the sales department. Any caused machine problems, will be customer's responsibility.

5. Competitive Advantage:
5.1 Equipped with device to collect cartons with tactic form needed for palletizing.
5.2 Inspection device is set for inspecting the storage of cartons on conveyor, automatic speed regulation according to inspection data.
5.3 Simple configuration and easy maintenance.
5.4 The safety device can stop machine and alarm automatically in any emergency.

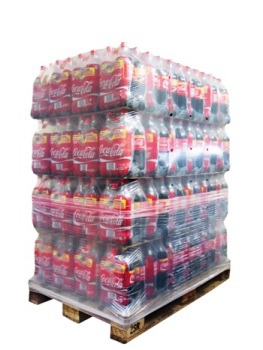

6. Packing Product:
