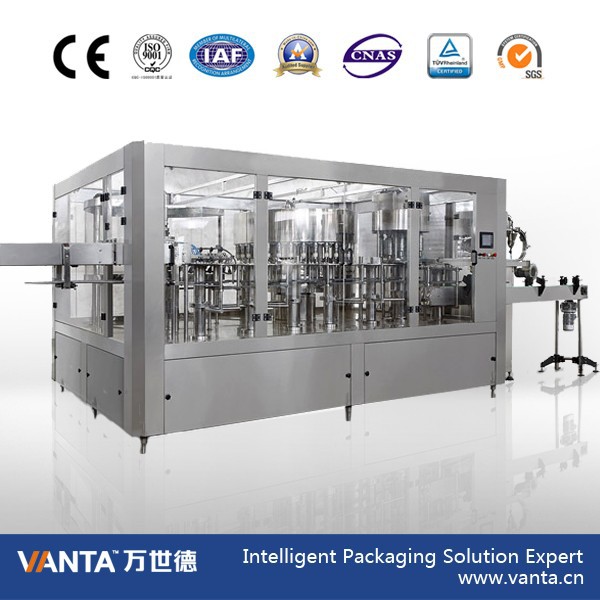

Aseptic Mineral Water Filling Machine Price (GZ24000) Liquid Packaging Machine
- machinery capacity:8000BPH, 20000BPH, 16000BPH
- application:Beverage
- packaging type:Bottles
- packaging material:Plastic
- automatic grade:Automatic
- driven type:Electric
- Voltage:380V
- place of origin:Guangdong, China
- brand name:VANTA
- dimension(l*w*h):4950X3850X3250mm
- warranty:1 Year
- key selling points:High-Accuracy
- filling material:Beer, Other, Milk, Water, Oil, Juice, Powder
- filling accuracy:1%
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Motor, Pressure Vessel, Pump, Other
- Capacity:24000bph
- Dimension:4950X3850X3250mm
- Bottle Volume:0.35-2L
- Function:Filing
- Type:Filling Machine
- Condition:New
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
- Showroom Location:Canada, Saudi Arabia
- Warranty of core components:1 Year
- Weight:1200
1. Description
Filling Machine Mineral Water Filling Machine Price. Vanta's 3-in-1 filling machine is in combination with rinsing, filling and capping technology. It is innovated and designed in the requirement of still pure water and mineral water and based on introducing and fusing advanced technologies from Germany and Italy.
2. Datasheet
| Water filling machine model | WSD-GZ24000 |
| Capacity (BPH) | 24000 |
| Filling volume (L) | 0.35-2 |
| Rinser-filler-capper quantity | 50-50-15 |
| Bottle size (mm) | Φ50-Φ90 H 150-310 |
| Filling accuracy (%) | ±2 |
| Pneumatic pressure (mpa) | 0.5 |
| Air consumption (L/min) | 1000 |
| Rated voltage (V) | 380 |
| Motor power (kw) | 11 |
| Rinsing water consumption ( /h) | 2.5 |
| Filling water consumption ( /h) | 12 |
| Dimensions (LXWXH mm) | 4950X3850X3250 |
| Weight (kg) | 12000 |
3. Competitive advantages
3.1 It adopts human-machine interface control technology.
3.2 Main components are imported from international famous brand.
3.3 The suspension bottle neck catcher structure allows the easy change of bottle type.
3.4 Spring type rinsing catcher can wash both inside and outside of the bottle.
3.5 The magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage.
3.6 Uses rotary cap unscramble to ensure no damage or noise and photoelectric sensor to detect missing cap.
3.7 Safety protection device ensures the safety of operator and machine.
3.8 High quality air filter ensures the working airflow conforms to sanitation criteria.
4. Product:
