Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000) Liquid Packaging Machine
- machinery capacity:20000BPH, 16000BPH
- application:Beverage
- packaging type:Bottles
- packaging material:Plastic
- automatic grade:Automatic
- driven type:Electric
- Voltage:380V
- place of origin:Guangdong, China
- brand name:VANTA
- dimension(l*w*h):4070X3200X3250mm
- warranty:1 Year
- key selling points:Flexible Manufacturing
- filling material:Beer, Other, Milk, Water, Oil, Juice, Powder
- filling accuracy:1%
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Motor, Pressure Vessel, Pump, Other
- Dimension:4070X3200X3250mm
- Capacity:18000bph
- Bottle Volume:0.35-2L
- Function:Bottle Washing Filling Capping
- Product name:Automatic Bottle Washing Filling Capping Machine
- Type:Filling Machine
- Condition:New
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
- Showroom Location:Canada, Saudi Arabia
- Warranty of core components:1 Year
- Weight:1100
http://youtu.be/Pqg2z3oVxEs
1. Description

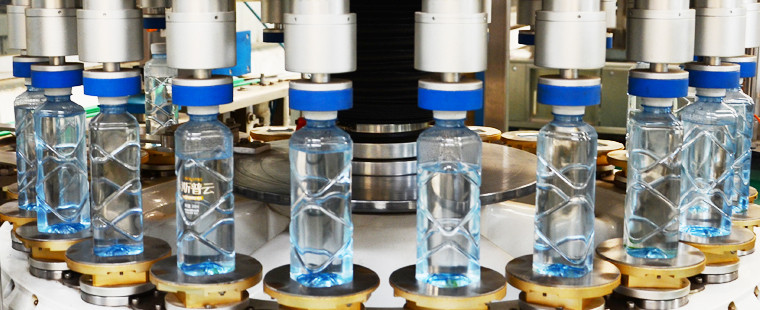

Vanta's 3-in-1 filling machine is in combination with rinsing, filling and capping technology. It is innovated and designed in the requirement of still pure water and mineral water and based on introducing and fusing advanced technologies from Germany and Italy.
2. Datasheet
| Water filling machine model | WSD-GZ18000 |
| Capacity (BPH) | 18000 |
| Filling volume (L) | 0.35-2 |
| Rinser-filler-capper quantity | 40-40-12 |
| Bottle size (mm) | Φ50-Φ90 H 150-310 |
| Filling accuracy (%) | ±2 |
| Pneumatic pressure (mpa) | 0.5 |
| Air consumption (L/min) | 600 |
| Rated voltage (V) | 380 |
| Motor power (kw) | 7.5 |
| Rinsing water consumption ( /h) | 2 |
| Filling water consumption ( /h) | 9 |
| Dimensions (LXWXH mm) | 4070X3200X3250 |
| Weight (kg) | 11000 |
3. Competitive advantages
3.1 It adopts human-machine interface control technology.
3.2 The main components are imported from international famous brand.
3.3 The suspension bottle neck catcher structure allows the machine change the bottle type easily.
3.4 Spring type rinsing catcher can wash both inside and outside of the bottle.
3.5 The magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage.
3.6 Uses rotary cap unscramble, without damage of cap surface or noise. The photoelectric sensor is installed to detect missing cap.
3.7 Safety protection device ensures the safety of operator and machine.
3.8 High quality air filter ensures the working airflow reaches the sanitation criteria.

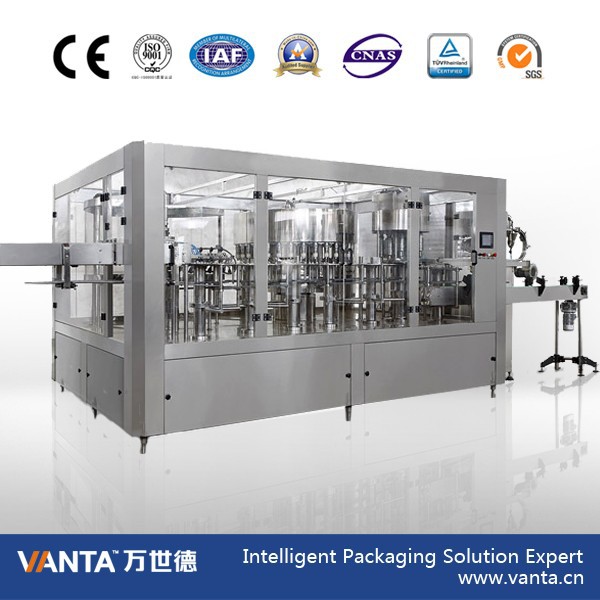

4. Product:
