Vertical carton forming machine(CX40)

• video outgoing-inspection:Provided
• machinery test report:Provided
• core components:Bearing, Motor, Pump
• automatic grade:Automatic
• usage:Other Forming Machine
• place of origin:Guangdong, China
• brand name:VANTA
• voltage:380V
• dimension(l*w*h):L2372 * W1210 * H1820mm
• warranty:12 months
• key selling points:Easy To Operate
• After-sales Service Provided:Engineers available to service machinery overseas
• Certification:CE
• Showroom Location:Canada, Saudi Arabia
• Warranty of core components:1 Year
• Condition:New
• Applicable Industries:Food & Beverage Factory, Other
• Weight:1

1.   Description:
Carton Erector (carton erecting machine ) is a piece of packaging machine which can automatically shape a variety of corrugated trays,

cases and boxes by hot melt glue or tape. The machine  is widely used in the production line of beverage,

drinks and foodstuff at low, high and medium speed.

Our Carton Erectors are in defferent types which can be customized according to client's requirements. Vanta persists in serving its customers heart and soul with advanced packing machinery.

2.   Equipment datasheet

Machine Model: WSD-

Speed: 30 boxes / minute

Carton size: L240-510 * W190-400 * H120-400mm

Power supply: 3P 380V 750W

Necessary air pressure: 5kg / cm3

Air consumption: 300NL / min

Tape size: 48,60 mm

Carton storage capacity: 80

Mechanical Dimensions: L2372 * W1210 * H1820mm

Machine weight: 1000KG

3. Main configuration

Motor: Taiwan Yuandong

PLC: Germany's Siemens

Touch screen: Germany's Siemens

Inverter: Japan's Mitsubishi or Germany's Siemens

Photoelectric switch: German Leuze

Voltage Electrical: Germany Schneider

Pneumatic components: SMC

Bearings: NSK

Linear Guide: South Korea Hiwin

4. Advantages

The machine has a fine appearance, small size, human-machine interface control, simple and convenient operation, and the total length of the machine is 2372mm, which is smaller than that of similar products.

Fold back flap mechanism adopts double - link double swing arm structure, easy movement, no vibration, and no noise, fold the flap more smoothly, and can make carton length bigger, maximum length 510mm.

Feeding mechanism, with double keep-off design, bearing more cartons, the most important thing is to drop only 4-5 cartons on demand, absolutely not putting pressure on the cartons and each carton is removed to ensure the success rate of taking out the cartons.

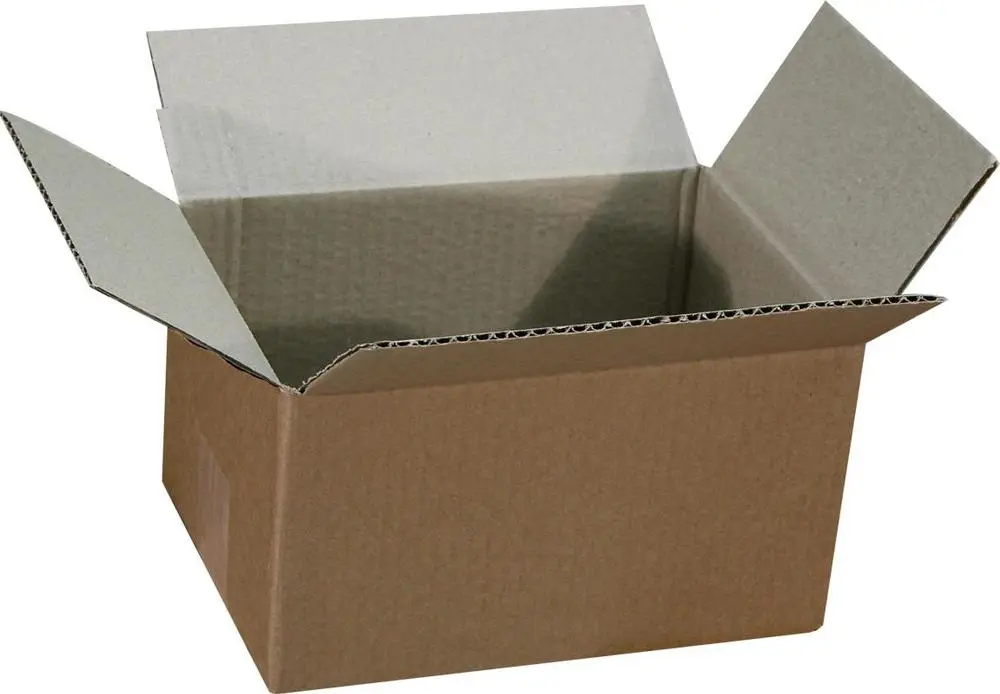

4. Finished Product
