Model No: WSD-B350
Carton Packing Glue Packer Wrap Around Case Packer Carton Packaging
minimum order :
1 set
Country of Origin :
Huangpu
Quantity :
- application:Beverage, Chemical, Medical
- packaging type:Bottles, Cans
- packaging material:Glass, Metal, Plastic
- automatic grade:Automatic
- driven type:Electric
- Voltage:380V
- place of origin:Guangdong, China
- brand name:VANTA
- dimension(l*w*h):11075x2000x2600mm
- warranty:1 Year
- key selling points:High-Accuracy
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Bearing, Motor, Pump, Gear, PLC, Other
- capacity:35 cartons/min.
- dimension:11075X2000X2600mm
- Installed Power:18.5kw
- Product name:Automatic Corrugated Carton Packing Machine
- Suitable for:Packing Box
- Marketing Type:Customized Packaging Line Solutions
- Type:Packaging Line
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Retail, Food & Beverage Shops
- Showroom Location:Canada, Indonesia
- Condition:New
- Warranty of core components:1 Year
- Weight:7.5
Product information
1. Description

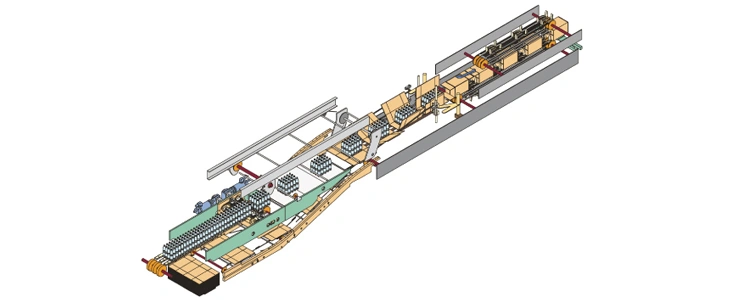

Carton packaging machine B series Wrap Around Carton Packer is to pack bottles into cases and sealed them by hot melt glue. The case packer is featured by high speed, handling wrap around blanks, modular design and quick change over between sizes. The pack collations vary from various containers in different shape, capacity and size, commonly in 2x2, 3x2, 4x3 or 6x4. The packing process is showing as follows:
2. Equipment datasheet
| Machine Model | B350 |
| Capacity (BPM) | 35 |
| Packing material | Corrugated paper |
| Bottle grouping | Servo grouping bottle |
| Applied bottle | Glass bottle, PET bottle, can Ø55-100mm H90-~300mm |
| Pack size | L200-480mm W170-300mm H90-300mm |
| Machine size | 11075x2000x2600mm (LXWXH) |
| Equipment installed power | 18.5kw |
| Compressed air | Pressure: 0.4~0.8MPa Consumption: 100L/MIN |
| Noise level | ≤ 85 dB |
3. Carton Packaging Machine Structure characters:
3.1 Patent design for bottle infeed system:
3.2 Advanced configuration
3.3 Fine material and durable:machine frame
3.4 Convenient adjustment:
3.5 High quality electrostatic spraying:
3.6 Reasonable structure, easy to operate and maintain.
4. Finshed Product
