Model No: LZB452
New Carton Packaging Intelligent Carton Packer with Hot Melt Glue Device LZB452
Country of Origin :
Huangpu
Quantity :
- application:Beverage, Chemical, Food
- packaging type:Bottles, Cans, Cartons, case
- packaging material:Plastic
- automatic grade:Automatic
- driven type:Electric
- place of origin:Guangdong, China
- brand name:VANTA
- warranty:1 Year
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Bearing, Motor, Pump, Other
- After-sales Service Provided:Engineers available to service machinery overseas
- Certification:CE Certification
- Type:Packaging Line
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory, Other
- Showroom Location:Canada, Saudi Arabia
- Condition:New
- key selling points:Automatic
- Warranty of core components:1 Year
- Weight:2000
Machine Video
http://youtu.be/Y07qAsbkW7w
Product information
1. Description:
MZB series is Continuous Wrap Around Case Packer to pack bottle into cases and sealed by hot melt glue. It features by high speed, handling of wrap around blanks, modular design and size changeover in 15 minutes. The pack collations can vary according to the containers shape, capacity and size; the most requested collations are: 2x2, 3x2, 4x3 and 6x4.
2. Equipment datasheet
2. Equipment datasheet
| Machine Model | LZB452 |
| Capacity (BPM) | 45 |
| Packing material | Corrugated paper |
| Bottle grouping | Servo grouping bottle |
| Applied bottle | Glass bottle, PET bottle, can Ø55-100mm H90-~300mm |
| Pack size | L200-480mm W170-300mm H90-300mm |
| Machine size | 11075x2000x2600mm (LXWXH) |
| Equipment installed power | 20kw |
| Control power | 24V DC |
| Compress air | Pressure: 0.4~0.8MPa Consumption: 100L/MIN |
| Weight | 7.5T |
| Ground load | 8 X 7500 N |
| Noise level | ≤ 85 dB |
| Environment request | 1. Temperature:Min.+10 º C -Max.+45 º C,Fluctuations in daily working ±3 º C 2. Humidity:Max.90%. 3. Product temperature: Min.10 º C 4. Set according to attitude of 800 meter |
3. Structure characters:
3.1 Patent design bottle infeed system: collocation can be for a variety of products, changing bottles and collocation easy to adjust, no need additional change over parts, low-impact bottle separating system, suitable for beer bottle, soft PET bottle etc.
3.2 Advanced configuration, safe and reliable:main drive using import servo controller, servo motor, FESTO pneumatic system, SICK sensor and SIEMENS S7 series system, PLC module integrated control etc., ensure machine running low failure and high efficiency.
3.3 Fine material and durable:machine frame, driving parts using import aluminum and stainless steel material, life span few times than material made in China, the table top chain and wheel made of macromolecule, self-lubrication and low wearing material, equipped with self-lubrication device, durable, very few spare parts changing for future running, saving production cost.
3.4 Convenient adjustment: when designing this machine at the beginning we take change over into account, all adjusting point installed regulator, scale plate and formats meter. It's easy for the operator to change different bottle size, saving time, convenient and fast.
3.5 High quality electrostatic spraying:when designing this machine at the beginning we consider that most of equipments in China are carbon steel painting, the disadvantage is low adsorption forces, easy falling off, easy aging, fading when high temperature, needs re-painting during overhaul after 2-3 years, which costs a lot, but we compare with foreign equipments, treat the machine by electrostatic spraying, cost is about 4-5 times of painting. Machine bright and shinning, high absorption forces, reaching the level of import machine.
3.6 Reasonable structure, easy to operate and maintain.

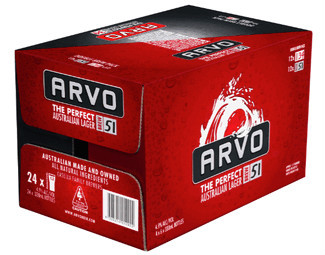

4. Finshed Product
3.1 Patent design bottle infeed system: collocation can be for a variety of products, changing bottles and collocation easy to adjust, no need additional change over parts, low-impact bottle separating system, suitable for beer bottle, soft PET bottle etc.
3.2 Advanced configuration, safe and reliable:main drive using import servo controller, servo motor, FESTO pneumatic system, SICK sensor and SIEMENS S7 series system, PLC module integrated control etc., ensure machine running low failure and high efficiency.
3.3 Fine material and durable:machine frame, driving parts using import aluminum and stainless steel material, life span few times than material made in China, the table top chain and wheel made of macromolecule, self-lubrication and low wearing material, equipped with self-lubrication device, durable, very few spare parts changing for future running, saving production cost.
3.4 Convenient adjustment: when designing this machine at the beginning we take change over into account, all adjusting point installed regulator, scale plate and formats meter. It's easy for the operator to change different bottle size, saving time, convenient and fast.
3.5 High quality electrostatic spraying:when designing this machine at the beginning we consider that most of equipments in China are carbon steel painting, the disadvantage is low adsorption forces, easy falling off, easy aging, fading when high temperature, needs re-painting during overhaul after 2-3 years, which costs a lot, but we compare with foreign equipments, treat the machine by electrostatic spraying, cost is about 4-5 times of painting. Machine bright and shinning, high absorption forces, reaching the level of import machine.
3.6 Reasonable structure, easy to operate and maintain.
4. Finshed Product
