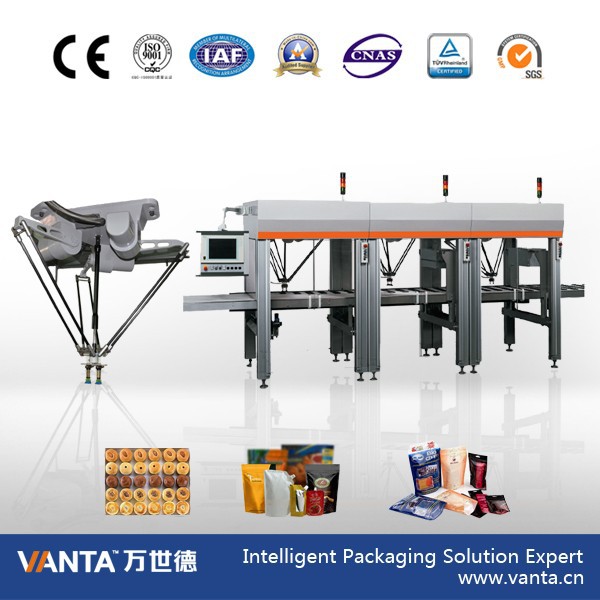

Delta Robot Food stuff Package High Speed

• warranty:1 Year
• type:Other
• video outgoing-inspection:Provided
• machinery test report:Provided
• core components:PLC, Engine, Bearing, Gearbox, Motor
• application:Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
• Packaging Type:Bags, Barrel, Cartons, case, Pouch, Stand-up Pouch
• Packaging Material:Metal, Plastic
• automatic grade:Automatic
• driven type:Electric
• Voltage:380V
• power:0.26kw
• place of origin:Guangdong, China
• key selling points:High-accuracy
• Type:Packaging Line
• Applicable Industries:Garment Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
• Showroom Location:Canada, Morocco
• Warranty of core components:1 Year
• Condition:New
• Weight:520 KG

1.   Specifications

1.1 Number of Axes:4

1.2 Mounting: Inverted

1.3 Payload:

Rated 1 kg

Max. 3 kg

1.4 Working Range:

Diameter: 1130 mm

Height: 425 mm

Rotation:±360° (4 axis)

1.5 Repeatability± 0.10 mm (Uni-directional)

1.6 Robot Cycle Times, sustained (seconds, at 20°C ambient)

Payload    4 axis

0.1 kg      0.35

1.0 kg      0.37

3.0 kg      0.42

1.7 Power Requirements:

24 VDC : 6 A

200 to 240 VAC : 10 A, single-phase

1.8 Power Consumption for 25/305/25 mm cycle

1.0 kg   0.260 kW

1.9 Conveyor Tracking

Conveyor Speed (mm/s)   Repeatability (mm)

200                     0.5

350-750                 0.5

800-1400                3.0

1.10         Protection

Below mounting points: IP65

Above mounting points: IP40

(with optional IP65 cable sealing kit)

1.11         Environmental Requirements

Ambient Temperature 1 - 40 °C

Humidity Range 5 - 90 %  (non-condensing)

1.12         Weight 52 kg (115 lbs)

2.    Product Features

2.1 Up to 50% less floor space required

2.2 Up to 25% larger volume workspace than similar sized robots

2.3 Up to 50% lighter for easy overhead installation

2.4 Up to 25% faster with equivalent payloads

2.5 Up to 30% more repeatable at equivalent conveyor speeds

3.   Product Benefits

3.1 Requires no external control electronics, with all amplifiers and controls fully embedded into the robot

3.2 Extended vertical reach allows for a 0.36 m3 (12.7 ft3) workspace, enabling a wider variety of packages to be used.

3.3 52kg (115lbs) total weight simplifies overhead installation

3.4 0.32 s cycle time enables higher product throughput and reduces cost per pick

3.5 Industry-leading conveyor tracking capabilities allow for <5mm repeatability at all conveyor speeds
