Rotary Low Speed Blow Molding Machine (06XSD) Liquid Packaging Machine
- plastic processed:PET
- max.bottle height(mm):380 mm
- neck diameter(mm):55 mm
- max.bottle diameter(mm):200 mm
- place of origin:Guangdong, China
- brand name:VANTA
- voltage:380V
- dimension(l*w*h):2200*3400*3200
- weight (kg):2000 KG
- automation:Automatic
- warranty:12 months
- key selling points:High Productivity
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Bearing, Motor, Pump, Gear, PLC, Other
- Product name:Automatic Blowing Molding Machine
- Bottle material:Pet Plastic
- Suitable bottle:100-2000ml
- Key words:PET Bottle Blowing Moulding Machine
- Condition:New
- Application:Bottle
- Showroom Location:Canada, Indonesia
- Applicable Industries:Food & Beverage Factory
- Warranty of core components:1 Year
- Bottle Volume(ml):7500
1. Description:
The DSL series of rotary blow molding machine is developed by Vanta engineer under the world's most advanced technology for bottle making. The PET blowing machien ensures high performances in making PET bottles by using high pressure air.
Thanks to high-tech components, minimized maintenance and operational costs and excellent quality/price ratio, the DSL series blowing machiner has already reached the leading level in the field of auto preform arrangement, heating and bottle stretching.
2. Equipment Datasheet
MODEL | DSL-06XSD | ||
PRODUCTION DATA | Mould cavities | N | 6 |
Max. capacity | ml | 2300 | |
Max. output for 500ml , bottle (*) | pcs/h | 10000 | |
Rate of finished product(*) | % | ≥99.5 | |
Host DIMENSIONS
| L * W * H | mm | 2200*3400*3200 |
| Total power installed | kW | 150 |
Medium power absorbed | kW | 90 | |
BLOW AIR | Nominal pressure | bar | 40 |
Air rate (**) | m3/min | 8 | |
humidity (without condensate) | % | 5 ~60 | |
Max. altitude(over sea) | m | 4000 | |
3. Advantages:
3.1 Reasonable structure, cover small area
3.2 High degree of automation and intelligence
3.3 Good, stable product quality
3.4 High productivity
3.5 Good visibility, maintainability, and security
3.6 High cleanliness, without pollution
3.7 Low noise machine
3.8 Low cost of production
3.9 Low failure rate

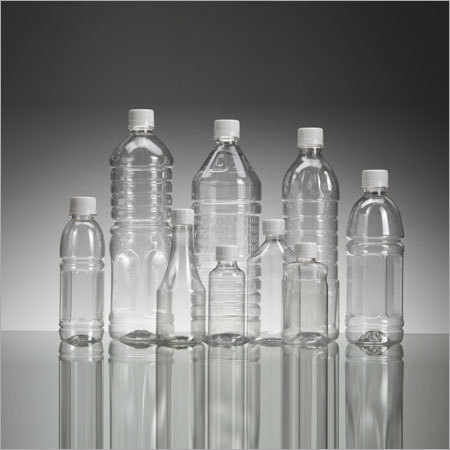

4. Products:
