Rotary PET Bottle Blower Uses Stretch Molding (14XSD)
- plastic processed:PET
- max.bottle height(mm):370 mm
- neck diameter(mm):55 mm
- max.bottle diameter(mm):200 mm
- place of origin:Guangdong, China
- brand name:VANTA
- voltage:380V
- dimension(l*w*h):4200*2700*3200mm
- weight (kg):3500 KG
- automation:Automatic
- warranty:12 months
- key selling points:High Productivity
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Bearing, Motor, Pump, Gear
- Product name:Automatic Blowing Molding Machine
- Type:Automatic Botte-blowing Machines
- Capacity:2000BPH ~ 12000BPH
- After-sales Service Provided:Engineers
- Processing Type:Stretch Blowing
- Condition:New
- Application:Bottle
- Showroom Location:Saudi Arabia, Philippines
- Applicable Industries:Food & Beverage Factory
- Warranty of core components:1 Year
- Bottle Volume(ml):7500
1. Description:
The DSL series Rotary PET blow molding machine is developed by Vanta under the world's most advanced technology for bottle making. The PET blower ensures its high performances of making PET bottles by using high pressured air and advanced technology.
Thanks to high-tech components, minimized maintenance and excellent quality/price ratio, the DSL series Bottle Maker has already reached the leading level in auto preform arrangement, heating and bottle stretching. The bottle making machine can be customized acoording to different requirements of customers. Vanta will provide you with high quality packaging equipment as well as complete after-sales service.
2. Equipment datasheet:
Model Number
| DSL-14XSD | ||||
PRODUCTION DATA | Mould cavities | N | 14 | ||
| Max. Height | mm | 320 | ||
| Max. capacity | ml | 2300 | ||
| Max. output for 500ml , bottle (*) | pcs/h | 22000 | ||
| Rate of finished product(*) | % | ≥99.5 | ||
DIMENSIONS | HOST | Length *Width*Height | mm | 4200*2700*3200 | |
| HEATING FURNACE | Length *Width*Height | mm | 5500*1210*2160 | |
| Total power installed | kW | 270 | ||
3. Advantages:
3.1 Reasonable structure, cover small area
3.2 High degree of automation and intelligence
3.3 Good, stable product quality
3.4 High productivity
3.5 Good visibility, maintainability, and security
3.6 High cleanliness, without pollution
3.7 Low noise
3.8 Low production cost
3.9 Low failure rate

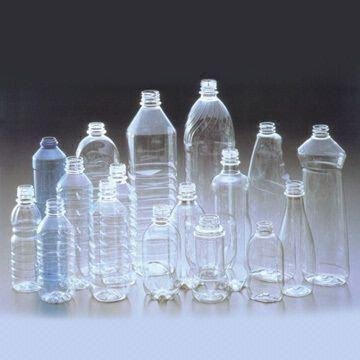

4. Products:
