Model No: SLM-500
Shrink Sleeve Label Machine (500 Bottles/Min.)SLM500 Liquid Packaging Machine
minimum order :
1 set
Country of Origin :
Huangpu
Quantity :
- packaging type:Bottles
- packaging material:Paper, Plastic
- automatic grade:Automatic
- driven type:Electric
- Voltage:220V/380V
- place of origin:Guangdong, China
- brand name:Vanta
- dimension(l*w*h):3065/950/2485
- warranty:1 Year
- key selling points:High-Accuracy
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:PLC, Pressure Vessel, Gear, Other
- capacity:500 bottles/min.
- bottle type:glass, metal, plastic
- label type:PVC, PET, OPS, OPP
- Labeling speed:500BPH
- Type:LABELING MACHINE
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory
- Showroom Location:Canada, Indonesia
- Condition:New
- Application:Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
- Warranty of core components:1 Year
- Weight:900
Product information
1. Description:
Shrink Sleeve Labeling Machine is a piece of highly automated equipment which has been widely used in labeling various bottled products in beverage, water, health care, cosmetics, medicine, oil and other industries.
The Shrink Sleeve Labeler has massively adopted aluminum alloy and stainless steel with high strength and corrosion resistance for its overall structure. The Sleeve Labeler adds modularized and humanized design to make all adjustments and replacements easier.
2. Sleeve Labeling patterns:
Shrink Sleeve Labeling Machine is a piece of highly automated equipment which has been widely used in labeling various bottled products in beverage, water, health care, cosmetics, medicine, oil and other industries.
The Shrink Sleeve Labeler has massively adopted aluminum alloy and stainless steel with high strength and corrosion resistance for its overall structure. The Sleeve Labeler adds modularized and humanized design to make all adjustments and replacements easier.

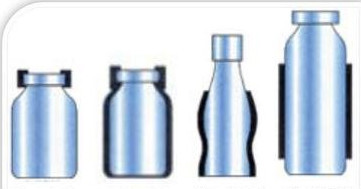

2. Sleeve Labeling patterns:
Mouth Whole Body Position
3. Data sheet:
3. Data sheet:
| Machine | Model | SLM-500 |
| Dimensions(L×W×H) | 3065×950×2485mm | |
| Speed | 500 BPM | |
| Qualified Rate | ≥ 99.5% | |
| Container | Height | Max. 320mm |
| Diameter | Φ35~φ90mm(customizable) | |
| Material | Glass, Metal, Plastic | |
| Shape | Round, Oval, Square, Rectangle | |
| Shrink Sleeve | Material | PVC, PET, OPS, OPP |
| Thickness | 0.035-0.10mm | |
| Label size | Length: Max.200mm | |
| Width: Max.175mm |

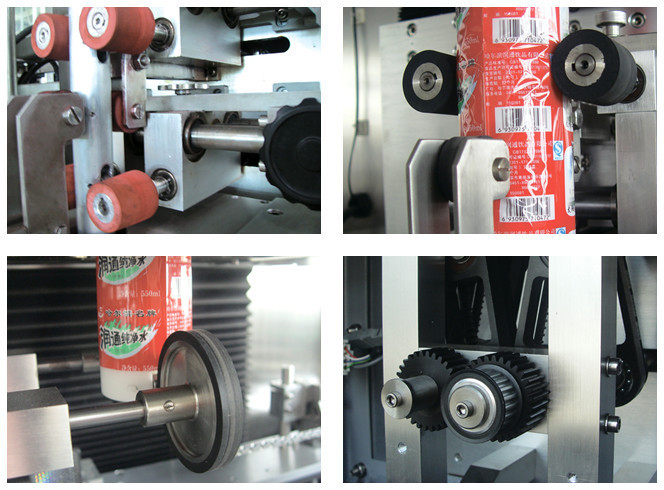

4. Machine Details:
5. Advantages
5.1 Novel design to meet market demands;
52 Durable frame made of stainless steel ensures stability;
5.3 Compact mechanisms ensure easier switch between bottle sizes;
5.4 Imported wearing parts increase lifetime and decrease downtime;
5.5 To realize smooth label feeding by controlling transmission tension and refuel time;
5.6 Both heads working maximizes 800BPM; if one halts, the other maximizes600BPM;
5.7 In the same production line, two heads can respectively sleeve the body and the cap.

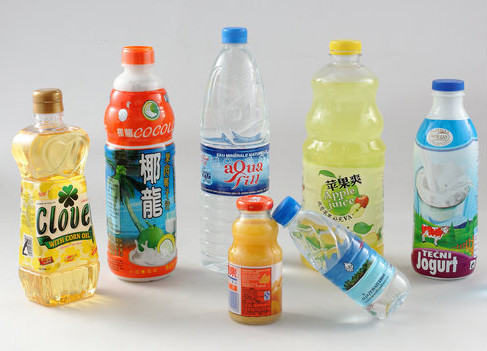

6. Finished Products
