Model No: SLM-600
SLM600 Shrink Sleeve Labeling Machine
minimum order :
1 set
Country of Origin :
Huangpu
Quantity :
- packaging type:Bottles
- packaging material:Paper, Plastic
- automatic grade:Automatic
- driven type:Electric
- Voltage:220V/380V
- place of origin:Guangdong, China
- brand name:Vanta
- dimension(l*w*h):2380/1100/3500
- warranty:1 Year
- key selling points:High Productivity
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:PLC, Pressure Vessel, Gear, Other, Motor, Engine, Bearing, Gearbox, Pump
- capacity:600 bottles/min.
- bottle type:Glass, Metal, Plastic
- lablel type:PVC, PET, OPS, OPP
- Certification:CE
- Type:LABELING MACHINE
- Applicable Industries:Food & Beverage Factory, Construction works , Other
- Showroom Location:Egypt, Canada, United States
- Condition:New
- Application:Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
- Warranty of core components:1 Year
- Weight:1000
Product information
1. Description:
Shrink Sleeving Machine is a piece of highly automated equipment which has been widely used in labelingvarious bottled products in beverage, water, health care, cosmetics, medicine, oil and other industries.The Shrink Sleeve Labeler has massively adopted aluminum alloy and stainless steel with high strength and corrosion resistance for its overall structure. The Sleeve Labeler adds modularized and humanized design to make all adjustments and replacements easier.

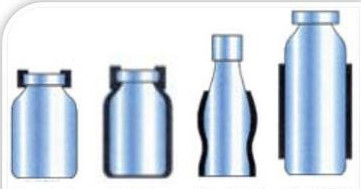

2. Sleeving Patterns:
Mouth Whole Body Position
3. Data sheet:
3. Data sheet:
| Machine | Model | SLM-600 |
| Dimensions(L×W×H) | 2380×1100×3500mm | |
| Speed | 600 BPM | |
| Qualified Rate | ≥ 99.5% | |
| Container | Height | Max. 320mm |
| Diameter | Φ50~φ90mm(customizable) | |
| Material | Glass, Metal, Plastic | |
| Shape | Round, Oval, Square, Rectangle | |
| Shrink Sleeve | Material | PVC, PET, OPS, OPP |
| Thickness | 0.035-0.10mm | |
| Label size | Length: Max.180mm | |
| Width: Max.145mm |

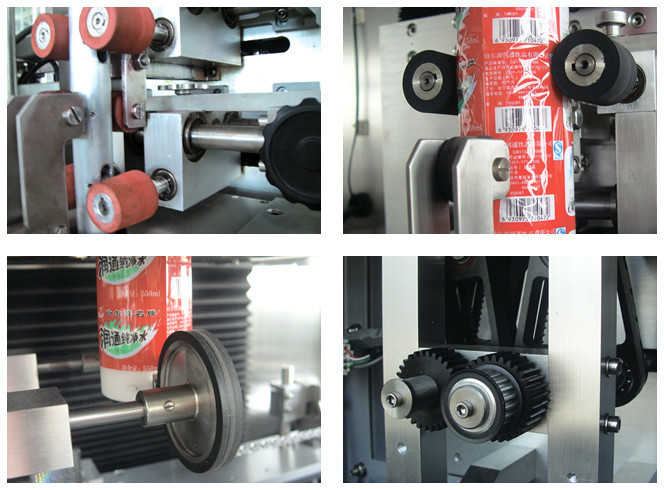

4. Machine Details:
5. Advantages
5.1 Novel design to meet market demands;
5.2 Durable frame made of stainless steel ensures stability;
5.3 Compact mechanisms ensure easier switch between bottle sizes;
5.4 Imported wearing parts increase lifetime and decrease downtime;
5.5 To realize smooth label feeding by controlling transmission tension and refuel time;
5.6 Both heads working maximizes 800BPM; if one halts, the other goes to 600BPM.
5.7 In the same production line, two heads can respectively sleeve the body and the cap.
5.1 Novel design to meet market demands;
5.2 Durable frame made of stainless steel ensures stability;
5.3 Compact mechanisms ensure easier switch between bottle sizes;
5.4 Imported wearing parts increase lifetime and decrease downtime;
5.5 To realize smooth label feeding by controlling transmission tension and refuel time;
5.6 Both heads working maximizes 800BPM; if one halts, the other goes to 600BPM.
5.7 In the same production line, two heads can respectively sleeve the body and the cap.

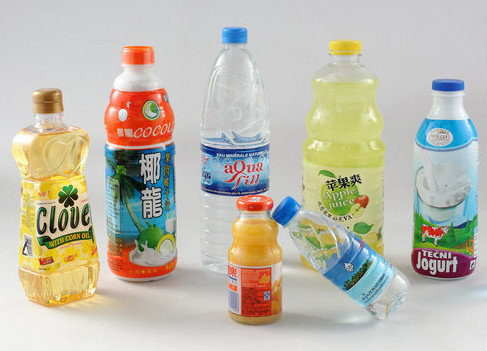

6. Finished product:
