5 L Bottle Machine Rotary Blow Molding Machine Cheap Mono Block Machine
- plastic processed:PET
- max.bottle height(mm):380 mm
- neck diameter(mm):55 mm
- max.bottle diameter(mm):200 mm
- place of origin:Guangdong, China
- brand name:VANTA
- voltage:380V
- dimension(l*w*h):4800*2000*2800
- weight (kg):2000 KG
- automation:Automatic
- warranty:12 months
- key selling points:High Productivity
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Bearing, Motor, Pump, Gear, PLC, Other
- Product name:Blow Moulding Machine
- Suitable bottle:100-2000ml Bottle
- Function:Pet Bottle Blow Making Machine
- Capacity:2000BPH ~ 12000BPH
- Condition:New
- Application:Bottle
- Showroom Location:Saudi Arabia, Canada
- Applicable Industries:Food & Beverage Factory
- Warranty of core components:1 Year
- Bottle Volume(ml):7500
1. Description:
The DSL series of rotary blow molding machine is developed by Vanta's engineer under the world's most advanced technology of bottle making. The bottle blower is specially designed for 5L and bigger bottles. The equipment mainly consists of host machine, heating furnace, auto conveying device, electrical system, and compressed air system. The electrical and pneumatic components, sealing element, bearing, and reducer adopt imported brands to ensure high performances.
2. Equipment datasheet
| PRODUCTION DATA | Mould cavities | N | 2 | |
| Max. body diameter | mm | 210 | ||
| Max. Height | mm | 430 | ||
| Max. diameter | mm | 45 | ||
| Max. preform Height | mm | 195 | ||
| Max. capacity | ml | 5000 | ||
| Max. output for 500ml , bottle (*) | pcs/h | 1500 | ||
| Nominal output for 500ml , bottle (*) | pcs/h | 1200 | ||
| Rate of finished product(*) | % | ≥99.5 | ||
| DIMENSION | Length *Width*Height | mm | 4800*2000*2800 | |
| ELECTRICAL FEEDING | Voltage | V | 380 | |
| Total power installed | kW | 100 | ||
| Medium power absorbed | kW | 25 | ||
3. Advantages:
3.1 High productivity
3.2 Specially designed for 5L and bigger bottle
3.3 Only need to use high pressure air, save cost
3.4 High degree of automation and intelligence
3.5 Good, stable product quality
3.6 Low noise
3.7 High cleanliness, without pollution
3.8 Low cost of production
3.9 Low failure rate

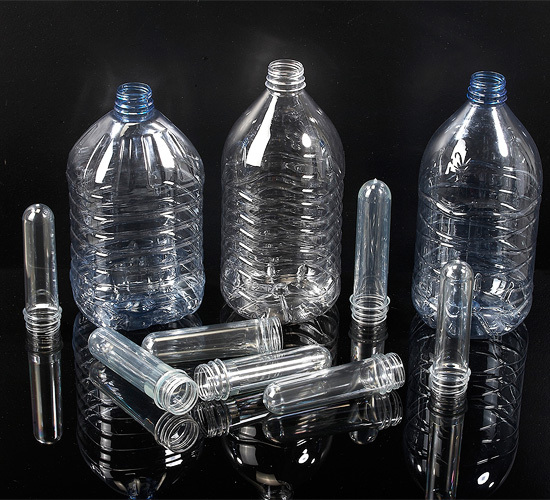

4. Product:
