Rotrary Plastic Bottle Blow Molding Machine (06XST) Liquid Packaging Machine
- plastic processed:PET
- max.bottle height(mm):380 mm
- neck diameter(mm):55 mm
- max.bottle diameter(mm):200 mm
- place of origin:Guangdong, China
- brand name:VANTA
- voltage:380V
- dimension(l*w*h):2200*3400*3200
- weight (kg):2000 KG
- automation:Automatic
- warranty:12 months
- key selling points:High Productivity
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Bearing, Motor, Pump, Gear, PLC, Other
- Product name:Automatic Blowing Molding Machine
- Function:Pet bottle making machine
- Machine type:automatic
- Capacity:2000BPH ~ 12000BPH
- Condition:New
- Application:Bottle
- Showroom Location:Saudi Arabia, Canada
- Applicable Industries:Food & Beverage Factory
- Warranty of core components:1 Year
- Bottle Volume(ml):7500
1. Description:
The DSL series of rotary blow molding machine is developed by Vanta engineer under the world's most advanced technology for bottle making. The bottle making machine ensures high performances in the blow-molding of PET bottles by using high pressure air.
Thanks to high-tech components, minimized maintenance and operational costs and excellent quality/price ratio, the DSL series bottle blowing machine has already reached industry leading level in auto preform arrangement, heating and bottle stretching.
2. Equipment Data
Model Number
| DSL-06XST | ||||
PRODUCTION DATA | Mould cavities | N | 14 | ||
| Max. Height | mm | 430 | ||
| Max. capacity | ml | 5000 | ||
| Max. output for 500ml , bottle (*) | pcs/h | 6000 | ||
| Rate of finished product(*) | % | ≥99.5 | ||
DIMENSIONS | HOST | Length *Width*Height | mm | 2200*3400*3200 | |
| HEATING FURNACE | Length *Width*Height | mm | 4050*1210*2160 | |
| Total power installed | kW | 190 | ||
COOLING /HEATING SYSTEM | BASE MOULD | Water inlet temperature (**) | ºC | 8~10 | |
|
| Power installed (**) | kW | 4 | |
| BODY MOULD | Water inlet temperature | ºC | 10~15 | |
|
| Power installed (**) | kW | 10 | |
3. Advantages:
3.1 Reasonable structure, cover small area
3.2 High degree of automation and intelligence
3.3 Good, stable product quality
3.4 High productivity
3.5 Good visibility, maintainability, and security
3.6 High cleanliness, without pollution
3.7 Low noise machine
3.8 Low cost of production
3.9 Low failure rate

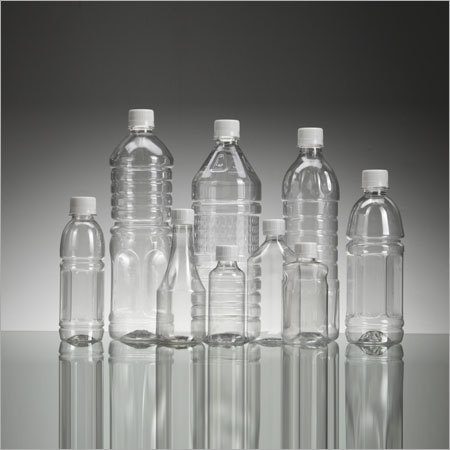

4. Products:
