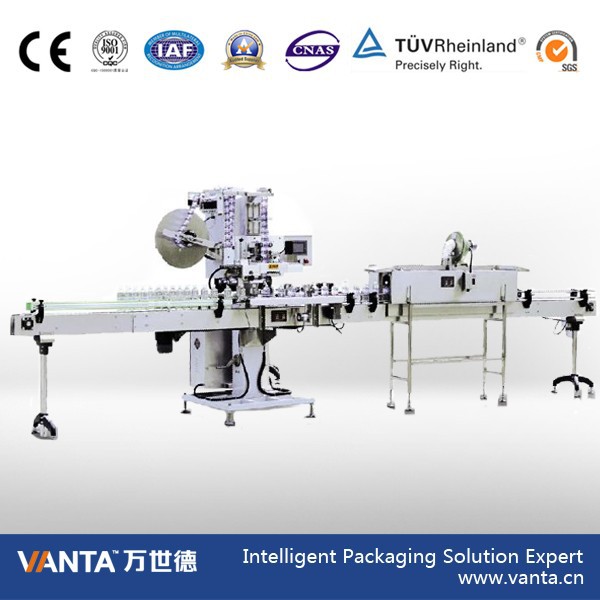

Shrink Sleeve Labeling Machine Beer Labeling Machine SLM100 (120 Bottles Per Min.)
- packaging type:Bottles
- packaging material:Paper, Plastic
- automatic grade:Automatic
- driven type:Electric
- Voltage:220V/380V
- place of origin:Guangdong, China
- brand name:Vanta
- dimension(l*w*h):2440/900/2100
- warranty:1 Year
- key selling points:Long Service Life
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:PLC, Pressure Vessel, Gear, Other
- capacity:120 bottles/min.
- label type:PVC, PET, OPS, OPP
- applied bottles:Round, Oval, Square, Rectangle
- Usage:Lable
- Labeling speed:100 ~ 300
- Type:LABELING MACHINE
- Applicable Industries:Manufacturing Plant, Food & Beverage Factory
- Showroom Location:Canada, Morocco
- Condition:New
- Application:Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
- Warranty of core components:1 Year
- Weight:700 KG
1. Description:
Shrink Sleeving Machine is a piece of highly automated equipment which has been widely used in labeling various bottled products in beverage, water, health care, cosmetics, medicine, oil and other industries.
The Shrink Sleeve Labeler has massively adopted aluminum alloy and stainless steel with high strength and corrosion resistance for its overall structure. The Sleeve Labeler adds modularized and humanized design to make all adjustments and replacements easier.

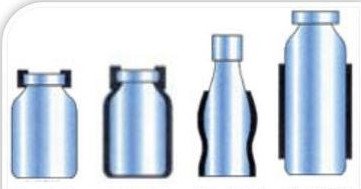

2. Sleeve Labeling Pattern:
Mouth Whole Body Position
3. Data sheet:
Machine | Model | SLM-100 |
Dimensions(L×W×H) | 2440×900×2100mm | |
Speed | 120 BPM | |
Qualified Rate | ≥ 99.5% | |
Container | Height | Max. 320mm |
Diameter | Φ50~φ110mm(customizable) | |
Material | Glass, Metal, Plastic | |
Shape | Round, Oval, Square, Rectangle | |
Shrink Sleeve | Material | PVC, PET, OPS, OPP |
Thickness | 0.035-0.10mm | |
Label size | Length: Max.200mm | |
Width: Max.175mm |

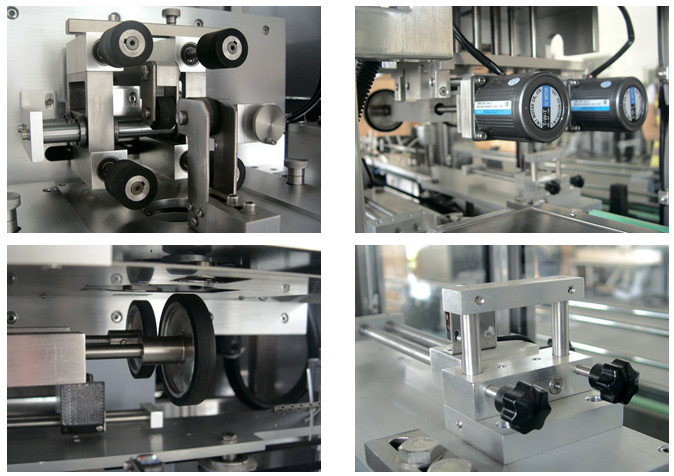

4. Machine Details:
5. Advantages
5.1 Novel design to meet market demands;
5.2 Durable frame made of stainless steel ensures stability;
5.3 Compact mechanisms ensure easier switch between bottle sizes;
5.4 Imported wearing parts increase lifetime and decrease downtime;
5.5 To realize smooth label feeding by controlling transmission tension and refuel time;
5.6 Both heads working maximizes 800BPM; if one halts, the other goes to 600BPM.
5.7 In the same production line, two heads can respectively sleeve the body and the cap.
6. Finished Product:
