Beverage Bottle Stretch Molding Machine (12XQD) Liquid Packaging Machine
- plastic processed:PET
- max.bottle height(mm):380 mm
- neck diameter(mm):55 mm
- max.bottle diameter(mm):200 mm
- place of origin:Guangdong, China
- brand name:VANTA
- voltage:380V
- dimension(l*w*h):4200*2700*3200
- weight (kg):2000 KG
- automation:Automatic
- warranty:12 months
- key selling points:High Productivity
- machinery test report:Provided
- video outgoing-inspection:Provided
- core components:Bearing, Motor, Pump, Gear, PLC, Other
- Product name:Automatic Blowing Molding Machine
- Function:Pet Bottle Blow Making Machine
- Suitable bottle:PET Bottle Size 200ml-2L
- Warranty:One Year
- Capacity:2000BPH ~ 12000BPH
- Condition:New
- Application:Bottle
- Showroom Location:Saudi Arabia, Canada
- Applicable Industries:Food & Beverage Factory
- Warranty of core components:1 Year
- Bottle Volume(ml):7500
1. Description:
The DSL series of rotary blow molding machine is developed by Vanta engineer under the world's most advanced technology for bottle making. It ensures high performances in the blow-molding of PET bottles by using high pressure air.
Thanks to high-tech components, minimized maintenance and operational costs and excellent quality/price ratio, the DSL series already reached industry leading level in auto preform arrangement, heating and bottle stretching.
2. Equipment datasheet:
| Model Number | Cold filling | |||
| DSL-12XQD | ||||
| PRODUCTION DATA | Mould cavities | N | 12 | |
| Max. body diameter | mm | 110 | ||
| Max. Height | mm | 320 | ||
| Max. diameter | mm | 38 | ||
| Max. preform Height | mm | 135 | ||
| Max. capacity | ml | 2300 | ||
| Max. output for 500ml , bottle (*) | pcs/h | 20000 | ||
| Nominal output for 500ml , bottle (*) | pcs/h | 18000 | ||
| Rate of finished product(*) | % | ≥99.5 | ||
| DIMENSIONS | HOST | Length *Width*Height | mm | 4200*2700*3200 |
| Weight | kg | 12000 | ||
| HEATING FURNACE | Length *Width*Height | mm | 5500*1210*2160 | |
| Weight | kg | 3500 | ||
| ELECTRICAL FEEDING | Voltage | V | 380 | |
| Frequency | Hz | 50 | ||
| Power line diameter | mm² | 180 | ||
| Total power installed | kW | 270 | ||
| Total motors/power installed | kW | 7.5 | ||
| Medium power absorbed | kW | 160 | ||
| Voltage permitted | ±5% | |||
| Frequency permitted | ±1% | |||
| Voltage auxiliary | V DC | 24 | ||
| Distribution | 3PH + PE | |||
| Cos . | 0.9 | |||
| COOLING /HEATING SYSTEM | BASE MOULD | Water inlet temperature (**) | ºC | 8~10 |
| Water inlet pressure (**) | bar | 4~6 | ||
| Power installed (**) | kW | 4 | ||
| BODY MOULD | Water inlet temperature | ºC | 10~15 | |
| Water inlet pressure | bar | 4~6 | ||
| Power installed (**) | kW | 10 | ||
| BLOW AIR | Nominal pressure | bar | 40 | |
| Air rate (**) | m3/min | 15 | ||
| Filtering grade(filter) | micron | 0.01 | ||
| Humidity | dehumidification | |||
| Oil | Free | |||
| HEATING | Heating groups * pcs | n | 16*9 | |
| ENVIRONMENT | Environment temperature (**) | ºC | 10 ~40 | |
| Environment humidity (without condensate) | % | 5 ~60 | ||
| Max. altitude(over sea) | m | 4000 | ||
| CONNECTIONS | Connection service air | Inch. | 1 | |
| Connection blow air | Inch. | 1.5 | ||
| Connection water and oil | Inch. | 1.5 | ||
3. Advantages:
3.1 Reasonable structure, cover small area
3.2 High degree of automation and intelligence
3.3 Good, stable product quality
3.4 High productivity
3.5 Good visibility, maintainability, and security
3.6 High cleanliness, without pollution
3.7 Low noise machine
3.8 Low cost of production
3.9 Low failure rate

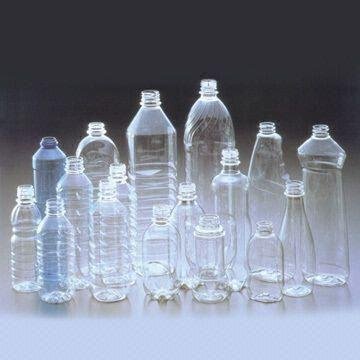

4. Products:
